insulating oil purifier
Price: |
17990.0~59990.0 USD |
Payment Terms: |
T/T,L/C |
Place of Origin: |
Chongqing, China (Mainland) |
Product Detail
Model No.:
VFD-T
Production Capacity:
100
Delivery Date:
15-35 days
Certification:
Others
suitable:
low viscosity lubrication o...
Vacuum Range:
-0.092 ~ -0.099
Max Vacuum Range:
≤ 50
Extra accessory 2:
flow meter, foam level dete...
Means of Transport:
Ocean,Land,Air
Packing:
wooden case
Type:
Vacuum Oil Purifier
Brand Name:
NSH
purifying:
branded oil, insulating oil...
Working Pressure:
≤ 0.3
Extra accessory:
Dielectric strength tester
1.Enhance the value of breakdown voltage
2.Flow Rate: 1800-18000L/H
3.Double-Stage Vacuum
4.online work
5.Automatic with testers and accessories

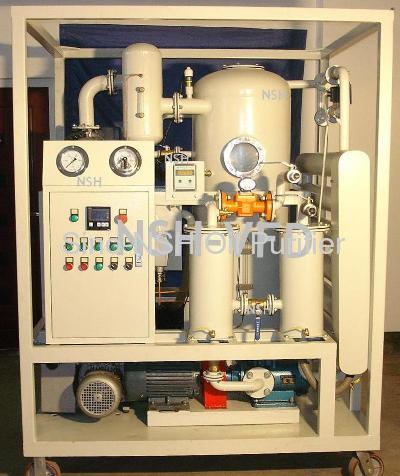

VFD-T series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. From the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which have insulation system. VFD-T series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Technical Specification
Item | Unit | VFD-T30 | VFD-T50 | VFD-T80 | VFD-T100 | VFD-T150 | VFD-T200 | VFD-T300 |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 |
Vacuum Range | Mpa | -0.092 - -0.099 |
Working Pressure | Mpa | ≤ 0.3 |
Max VacuumRange | Pa | ≤ 50 |
Temperature Range | C | 45 -80 |
Breakdown Voltage | kV | ≥ 75 |
Impurity Size | μ m | ≤ 5 |
Dielectric Loss | tgδ | ≤ 0.005 |
Interfacial Tension | mN/m | ≥ 40 |
Water Content | PPM | ≤ 5 |
Gas Content | % | ≤ 0.1 |
Power Supply | 380V/50Hz(or as needed) |
Working Noise | dB(A) | ≤ 72 | ≤ 78 |
Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 |
Total Power | Kw | 33 | 52 | 77 | 96 | 128 | 188 | 252 |
Pipeline Diameter | mm | DN20 | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 |
Net Weight | Kg | 600 | 800 | 1000 | 1300 | 1800 | 2100 | 2400 |
Size | length | mm | 1500 | 1600 | 1700 | 1900 | 2200 | 2300 | 2350 |
width | mm | 1100 | 1400 | 1500 | 1600 | 1700 | 1750 | 1850 |
high | mm | 1750 | 1800 | 1850 | 1900 | 2100 | 2250 | 2250 |
